30m detecting range Surface mounted Microwave Motion Sensor for warehouse 12m mounting height
1. Features
1) Built-in motion sensor and daylight sensor for intelligent control
2) Low impedance sensor antenna patent helps to protect against the interference of wireless signals like 5G, Wi-Fi, Bluetooth, etc.
3) Remote control MH10 can set parameters
4) Elongated Induction area with a farthest detecting range up to 30m
5) 3-12m installation height
6) RED certification for mass production
7) Independent surface mounting
| Input | Operating Voltage Rage | 120V-277V AC, 50Hz |
| Stand-by Power | <1W |
| Surge Test | L--N: 1kV |
| Output | Working Mode | ON/OFF function |
| Type of Load | Inductive or Resistive Load |
| Load Capacity | 800W (Resistive), 400w(Inductive) |
| Max. Surge Capacity | 10A relay- 30A (50% Ipeak, twidth =500uS@230Vac full load, cold start); 60A (50% Ipeak, twidth =200uS@230Vac, full load, cold start) |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz,ISM Band. |
| Transmitting Power | 0.5mW Max. |
| Hold Time | 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min |
| Detection Area | 100%/75%/50%/25% |
| Daylight Sensor | 5lux/30lux/50lux/100lux/150lux/Disable |
| Detecting Area | 15*6m Max |
| Mounting Height | 12m Max |
| Detecting Angle | 150° |
| Operating Environment | Operating Temperature | 0℃…+50℃ |
| Storage Temperature | Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing) |
| Certificate Standards | Safety Standards | EN61058-1,EN61058-1-2 |
| EMC Standards | EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479 |
| Environmental Requirement | Compliant to RoHS |
| Certificate | Compliant to CE RED |
| Others | Wiring | screw type terminals, wire diameter: 1.5-4mm2 |
| IP Rating | IP20 |
| Protection Class | Class II |
| Dimension | 110*110*32mm |
| Package | White box+ White box tags+ Clapboard+ Carton(K=A) |
| Lifetime | 5 years warranty @Ta 230V full load |
| Note 1. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
2. Function

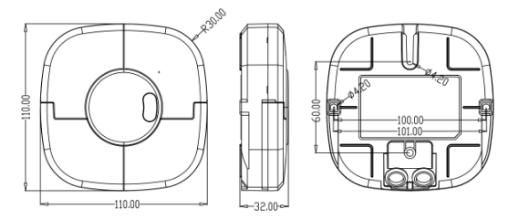

3. Dimension
4. Wiring
5. Structure
6. Detection Area
7. Remote Control
8. Initialization
After first power on, the light turns on and closes after 10 seconds. During the initialization, sensor is not able to detect moving objects signal.
9. Factory Settings
Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable Indicator light: Close
10. Application Notice
1) The sensor should be installed by a professional electrician. Please disconnect the power before installing, wiring, or changing the setting of the DIP switch.
2) It is recommended that each unit should be separated by more than 1m when installing multiple units.
3) Put the sensor as far as possible from large areas of metal plate, glass, and other materials with high medium density to avoid triggering by mistake.
4) Avoid using objects that have been vibrating for a long time around the sensor, such as shaking fans, etc. The vibration signal will be regarded as the motion signal to trigger the sensor.
