12-24VDC Operating Motion Sensor MC011D6 120W Max LED Light Operating Current 5A Max for Dimming Function
Description
The sensor adopts a unique gradual dimming mode. Slowly and softly dimming supply the comfortable vision for users.
MC011D6 is an innovation and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
The sensor provides a simple and cost-effective sensor DIM solution. With DC operation voltage from LED driver, no need extra power from power line. No DALI or 1-10V dimmable LED drivers it is suitable for common LED drivers and achieve 3-step dimming function. Particularly suitable for price sensitive luminaires.
Feature:
1. Automatic dimming when used in combination with comman current LED drivers or ballasts.
2. Built-in adjustable daylight sensor.
3. 4-pole press-in terminal (L,N,N,L′),easy assembly.
4. Compact size makes it suitable to fix within most luminaries

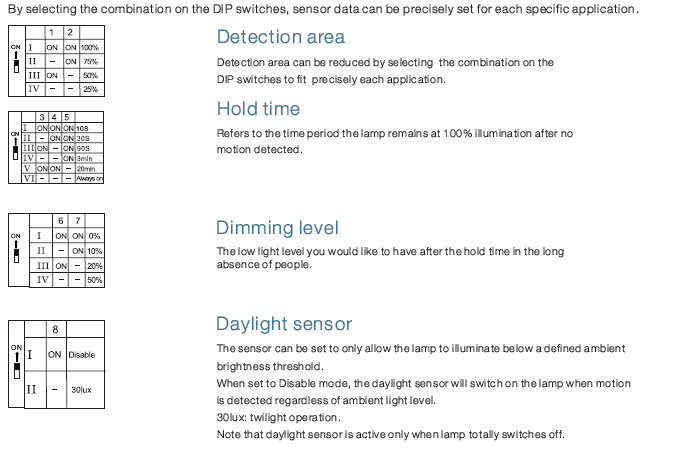

5. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
6. Wide detection area, range up to 16m in diameter.
Product Information
Function:
On off function
2- Step dimming function
Wiring
Specifications:
| Operating voltage | DC 12-24V |
| Rated load | Max.120W LED light |
| Operating current | 5A max |
| HF system | 5.8GHz±75MHz, ISM wave band |
| Power consumption | ≤0.5W(standby), <1W(operation) |
| Transmitting power | <0.5mW |
| Detection zone Max.(D x H) | 16m x 6m |
| Motion detection | 0.5~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation Temperature | -25℃~70℃ |
| Hold time | 5s/30s/90s/3min/20min/Always on |
| Daylight sensor | 30lux/Disable |
| Detection sensitivity | 25%/50%/75%/100% |
| Dimming level | 0%/10%/20%/30% |
| Mounting height | 6m Max |
| Life time | 50000 hours |
| Guaranty | 5 years |
Detection Pattern
Applications:
Stairwell, corridor, balcony, pathway, et
